Features
PCI-Express 2.0x4
Provides four Super Speed USB 3.0 Type-A ports to support total transfer bandwidth up to 20Gb/s (10Gb/s for Dual Bus Model)
Support USB Battery Charging Specification Revision 1.2
Complaint with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Supports the following speed data rates as follows:
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
Supports 4 downstream ports for all speeds
Built-in 4-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
System Requirements
Windows XP/Vista/7/2008 R2/8/8.1 (32/64 bit), Linux 2.6.31 or later
PCI Express x4, x8 or x16 slots
Package Contents

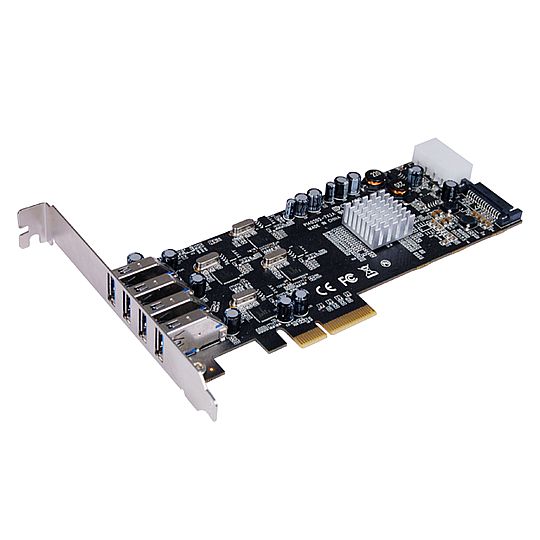

1 x Dual/Quad Channel 4-Port USB 3.0 PCI Express Card
1 x Driver CD
1 x User Manual
Note: Contents may vary depending on country/market.
