Compliant with PCI Express Base Specification 1.1
Supports x1, x4, x8, x16 (lane) PCI Express Bus connector keys
Built-in 16C950 compatible UART
128-bype deep transmit/receive FIFOs
Serial communication speeds up to 1Mbps
RS-422 and RS-485 auto detect and switching
Low profile form factor
±15KV ESD protection on all signal pins
2KV isolation protection for all signal and power (Isolation version only)
Plug-n-Play, I/O address and IRQ assigned by BIOS
Support Windows XP/Vista/7/8, Linux 2.6.x/3.x
System Requirements
Windows® XP/Vista/7/8 (32/64 bit), Linux 2.6.x/3.x
One available PCI Express slot
Package Contents

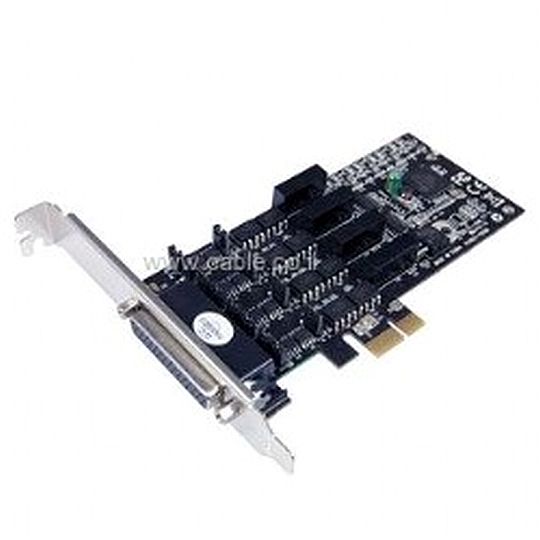

1 x RS-422/485 PCIe Card
1 x Driver CD
1 x User Manual
1 x Fan Out Cable
